| IMAGE | PRODUCT | SIZE RANGE | PROPERTY | STD(DIN/ISO) |
|---|---|---|---|---|
 |

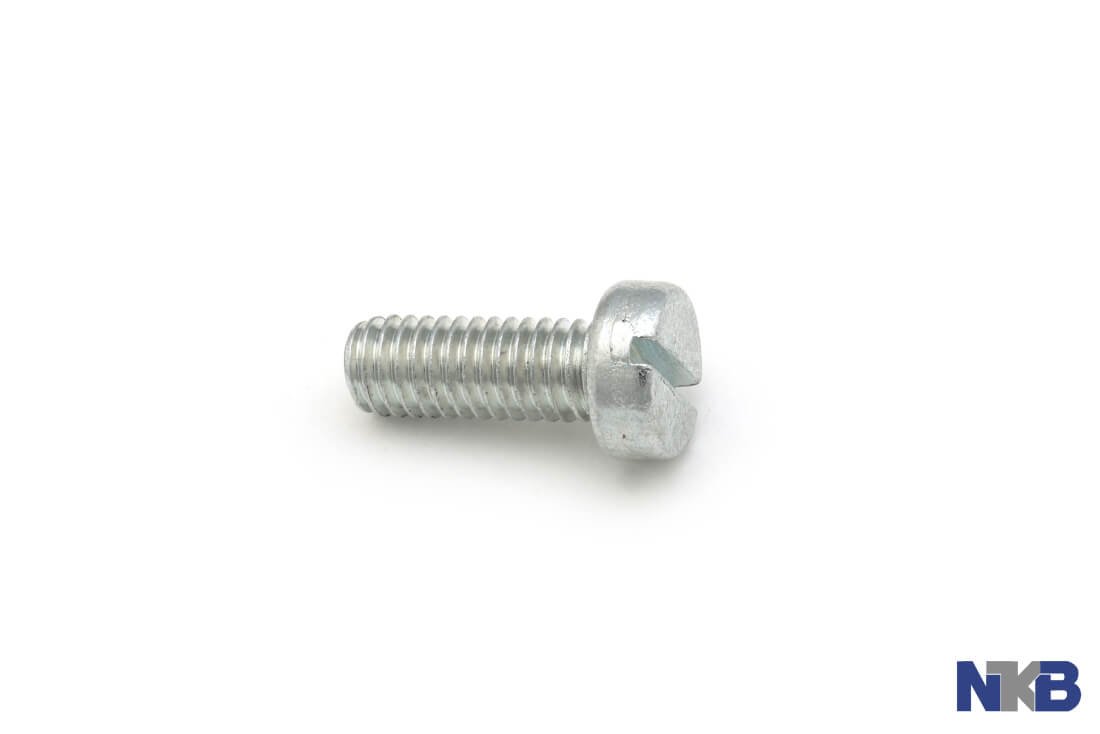

CH HD SCREW | DIAMETER : M2 to M8 LENGTH : 4 MM TO 100 MM |
MS | DIN 84 ISO 1207 |
 |

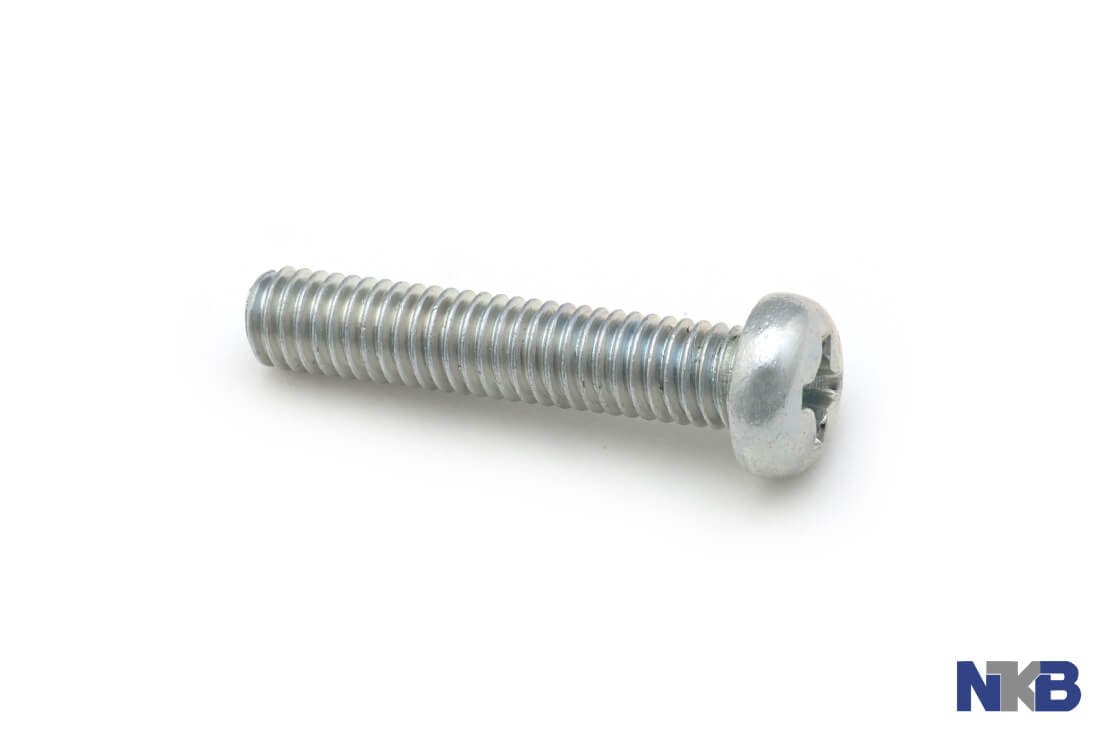

PAN PH MACHINE SCREW | DIAMETER : M2 to M8 LENGTH : 4 MM TO 70 MM |
MS | DIN 7985 ISO 7045 |
 |

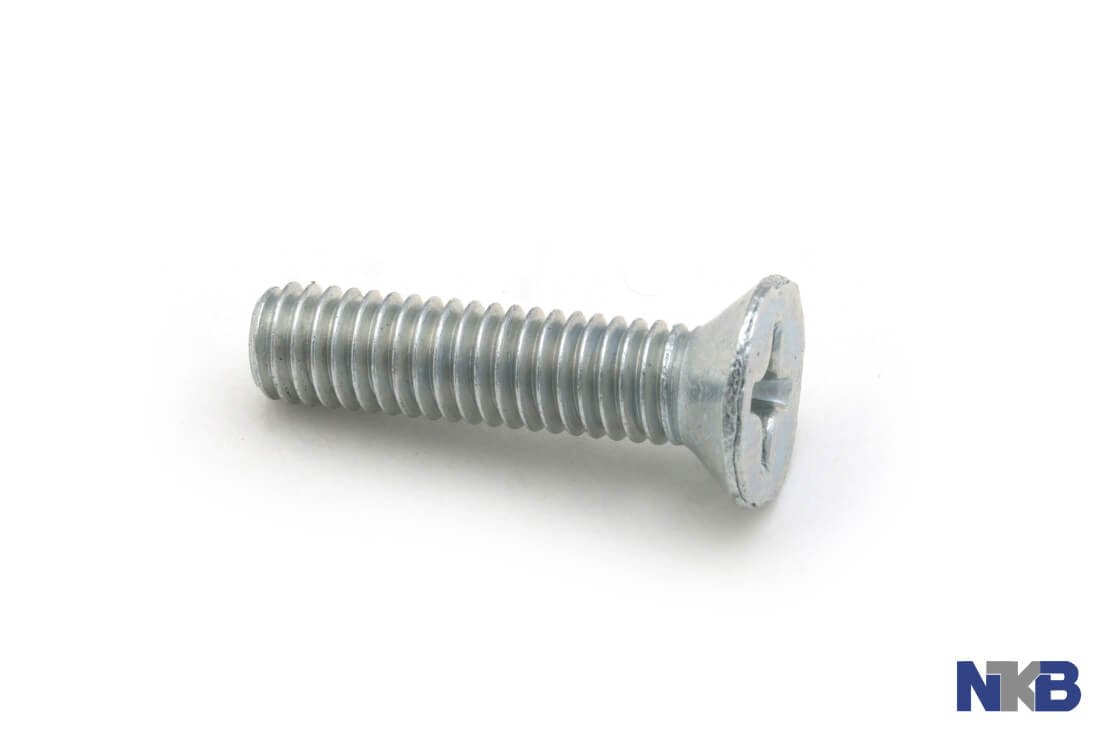

CSK PH MACHINE SCREW | DIAMETER : M2 to M6 LENGTH : 6 MM TO 70 MM |
MS | DIN 965 ISO 7046 |
 |

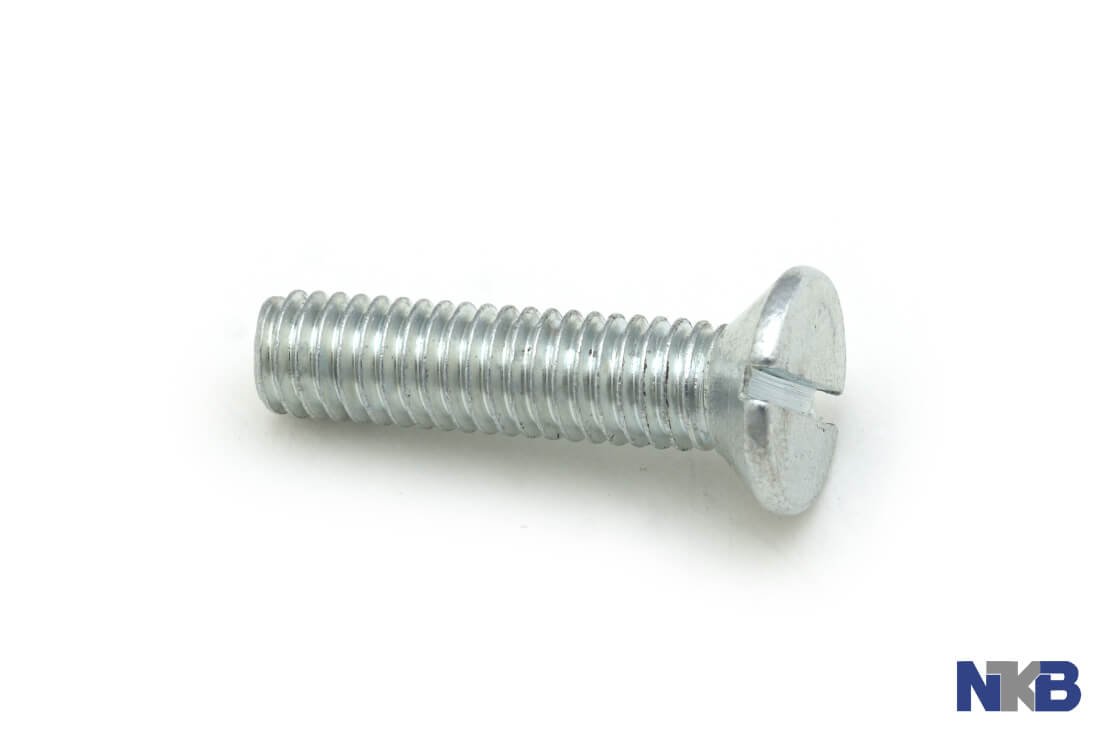

CSK MACHINE SCREW | DIAMETER : M2 to M8 LENGTH : 6 MM TO 70 MM |
MS | DIN 963 ISO 2009 |
 |

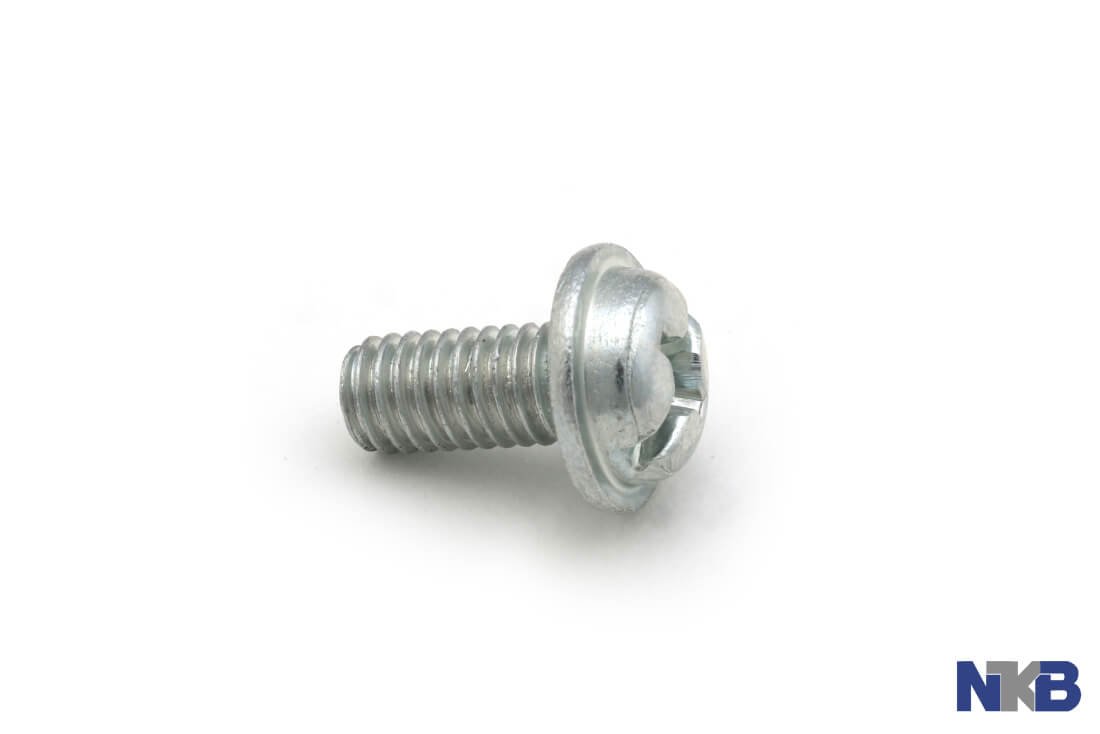

WASHER HEAD MACHINE SCREW | DIAMETER : M3 to M6 LENGTH : 6 MM TO 50 MM |
MS | |
 |

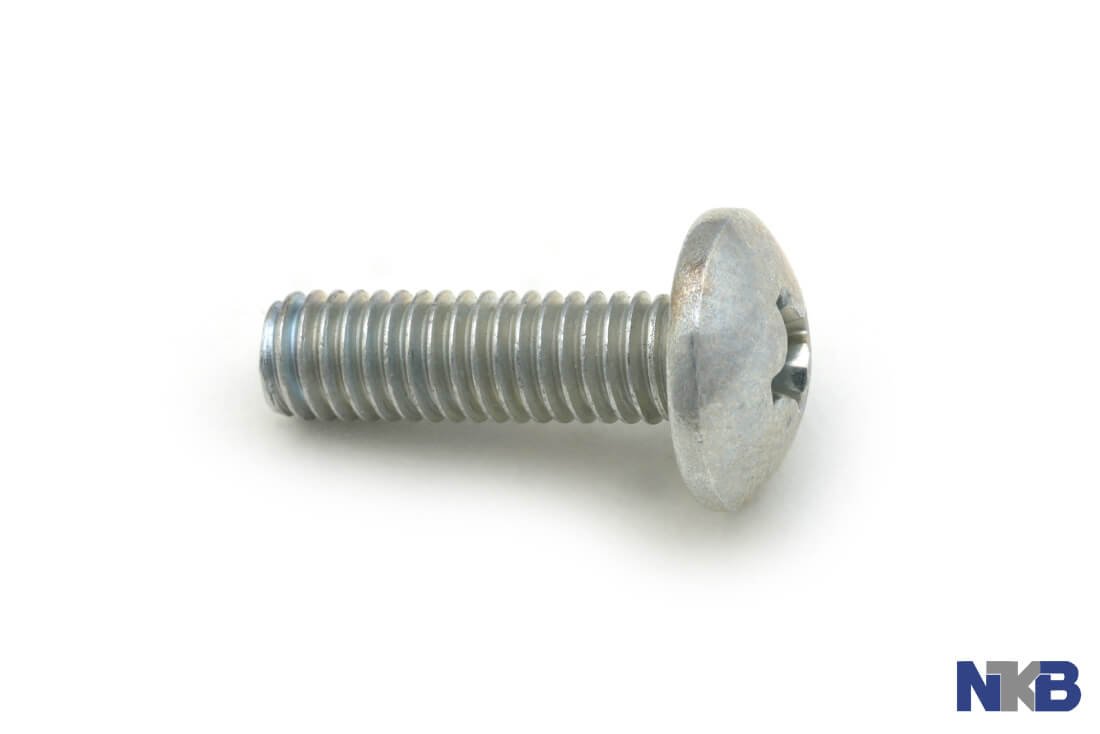

TRUSS HEAD MACHINE SCREW | DIAMETER : M4 to M6 LENGTH : 6 MM TO 50 MM |
MS | JIS B 1101 |
 |

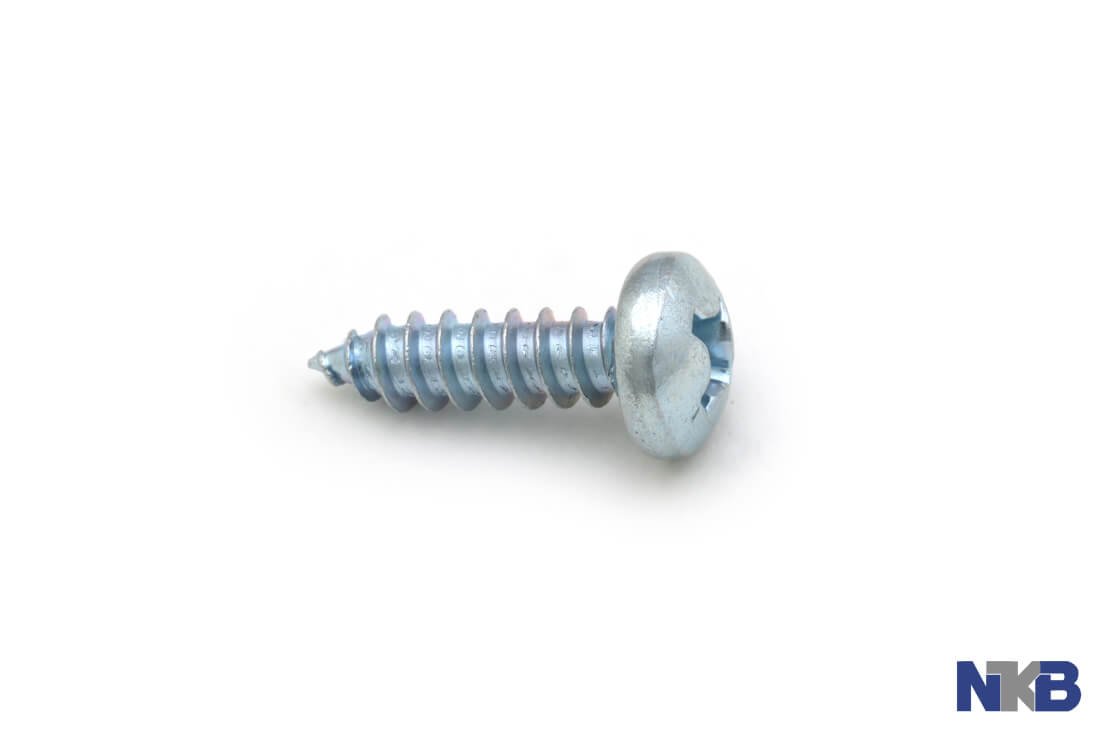

PAN PH SELF TAPPING SCREW | DIAMETER : NO 2 TO NO 12 LENGTH : 4.5 MM TO 50 MM |
MS | DIN 7981 ISO 7049 |
 |

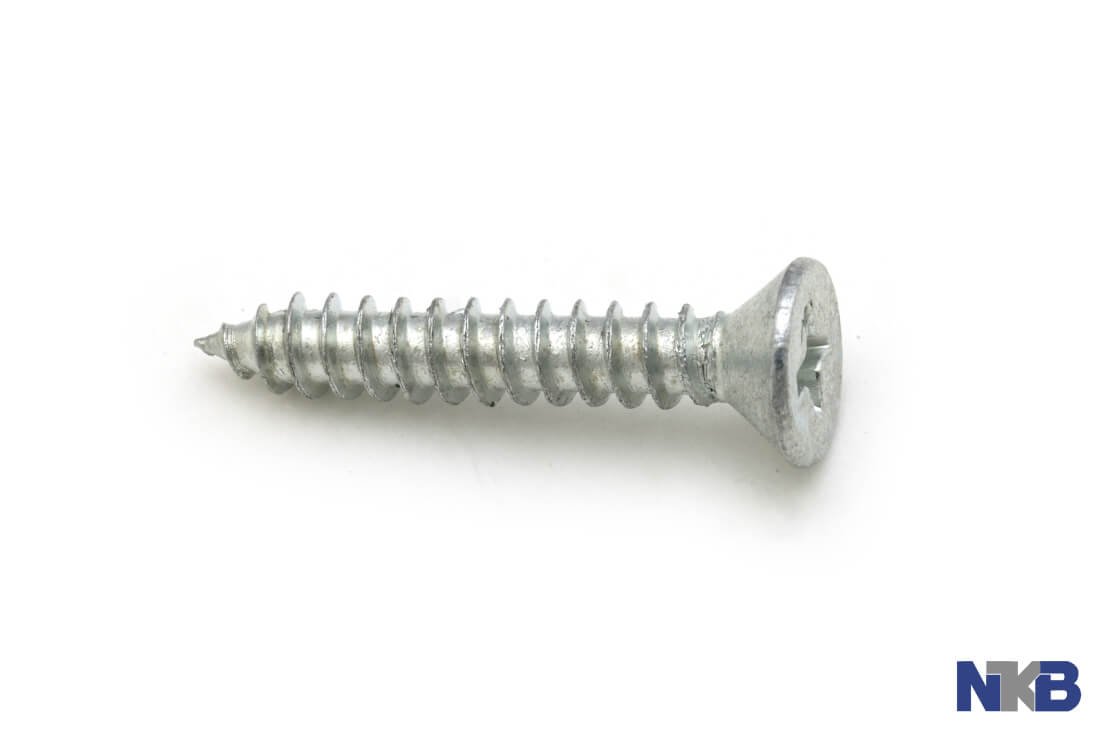

CSK PH SELF TAPPING SCREW | DIAMETER : NO 2 TO NO 10 LENGTH : 6.5 MM TO 50 MM |
MS | DIN 7982 ISO 7050 |
 |

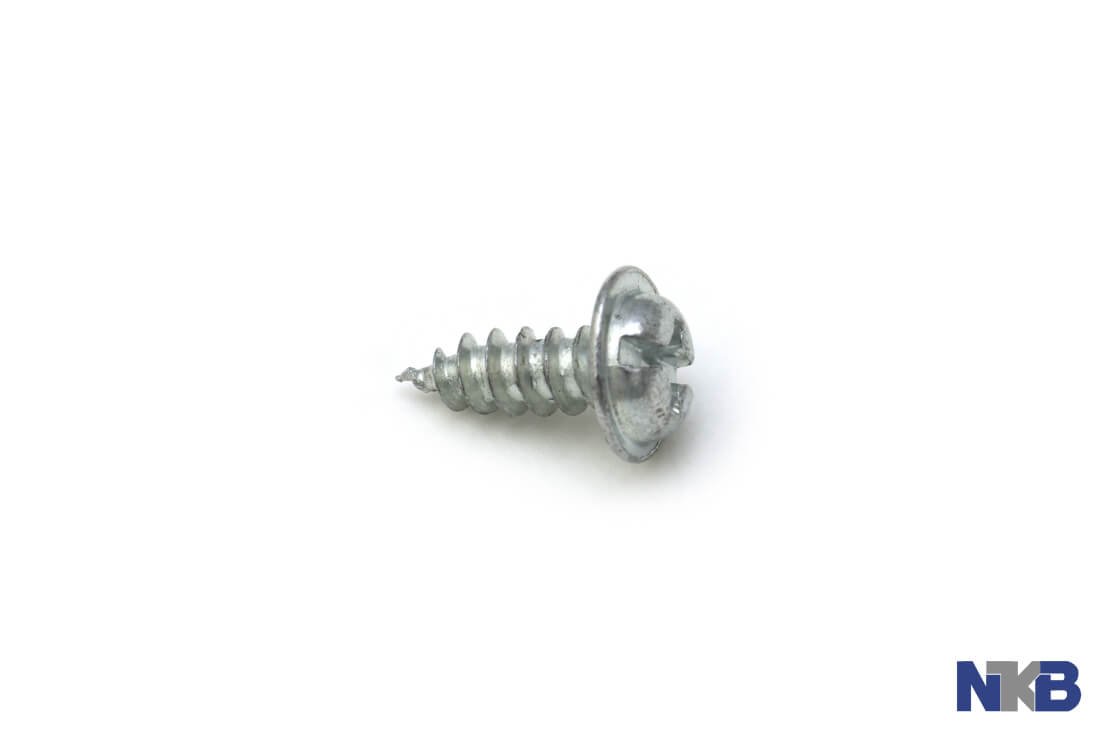

WASHER HEAD SELF TAPPING SCREW | DIAMETER : NO 4 TO NO 6 LENGTH : 6.5 MM TO 25 MM |
MS | |
 |

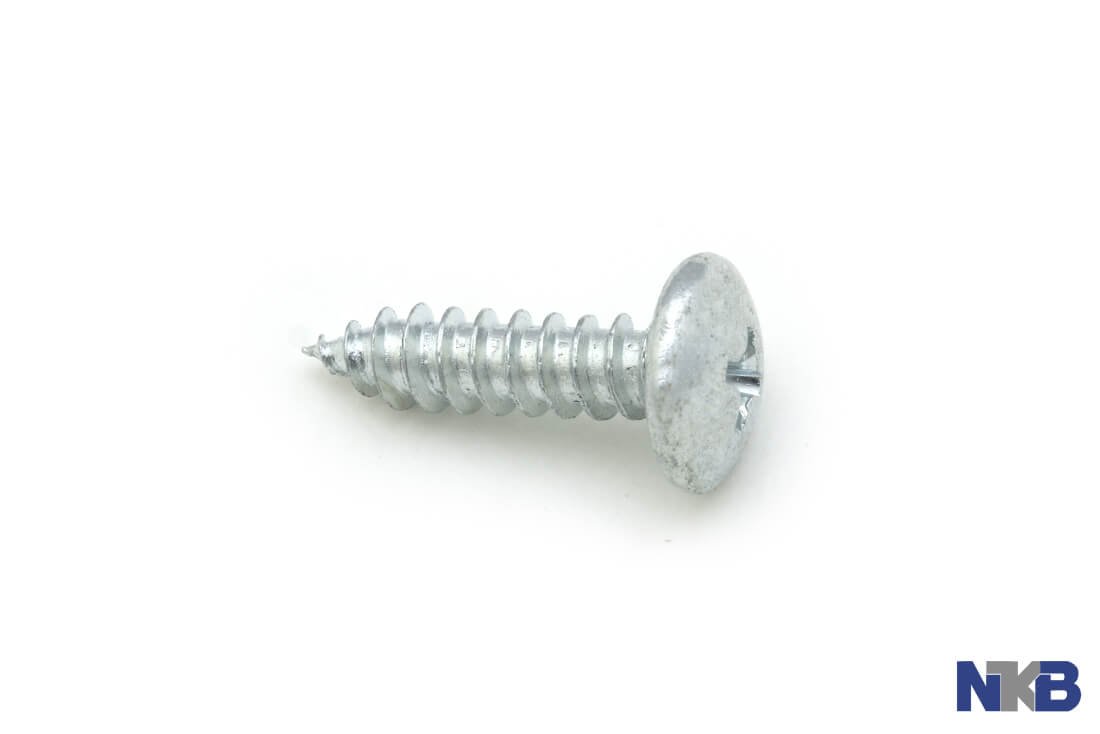

TRUSS HEAD SELF TAPPING SCREW | DIAMETER : NO 6 TO NO 10 LENGTH : 9.5 MM TO 25 MM |
MS | JIS B 1122 |
 |

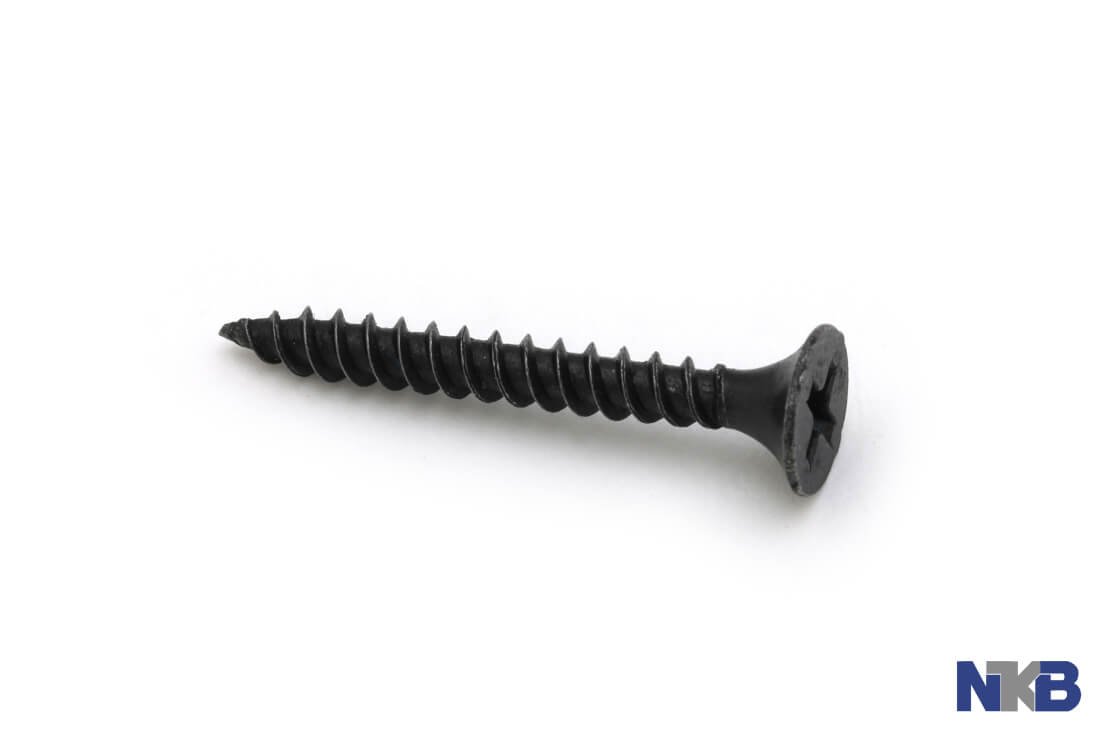

DRYWALL SCREW | DIAMETER : NO 6 LENGTH : 13 MM TO 75 MM |
MS | DIN 18182 |
 |

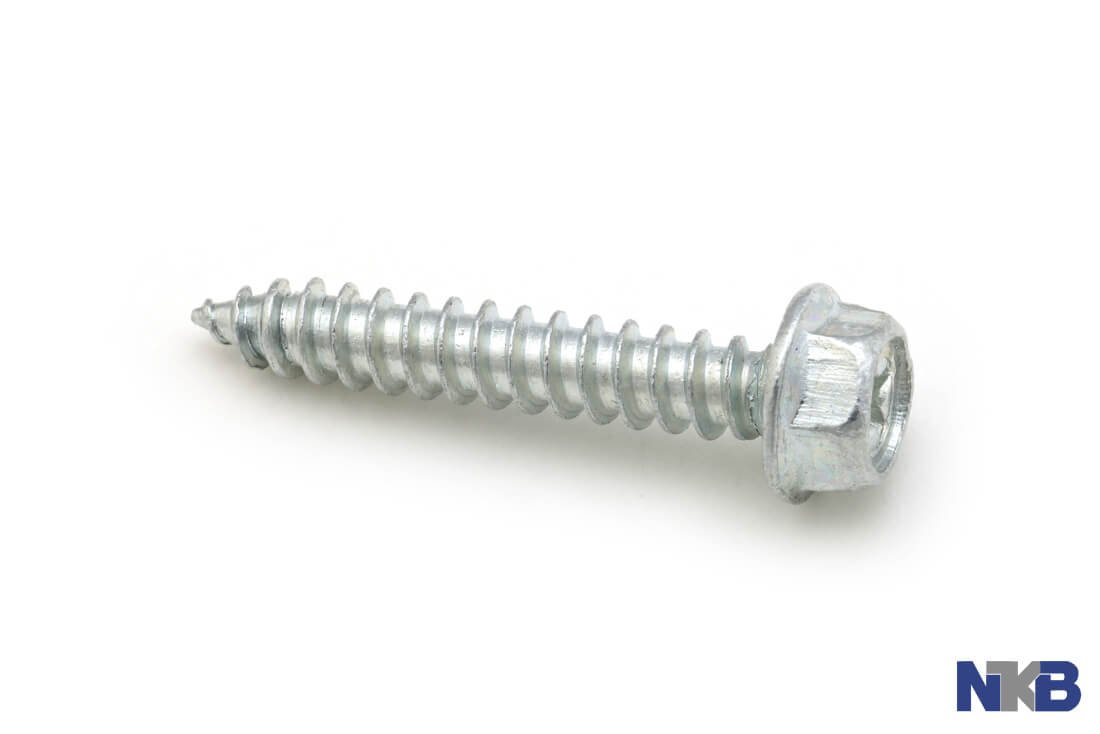

HEX HD PHILIPS SELF TAPPING SCREW | DIAMETER : NO 6 LENGTH : 16 MM TO 32 MM |
MS | DIN 6928 |
